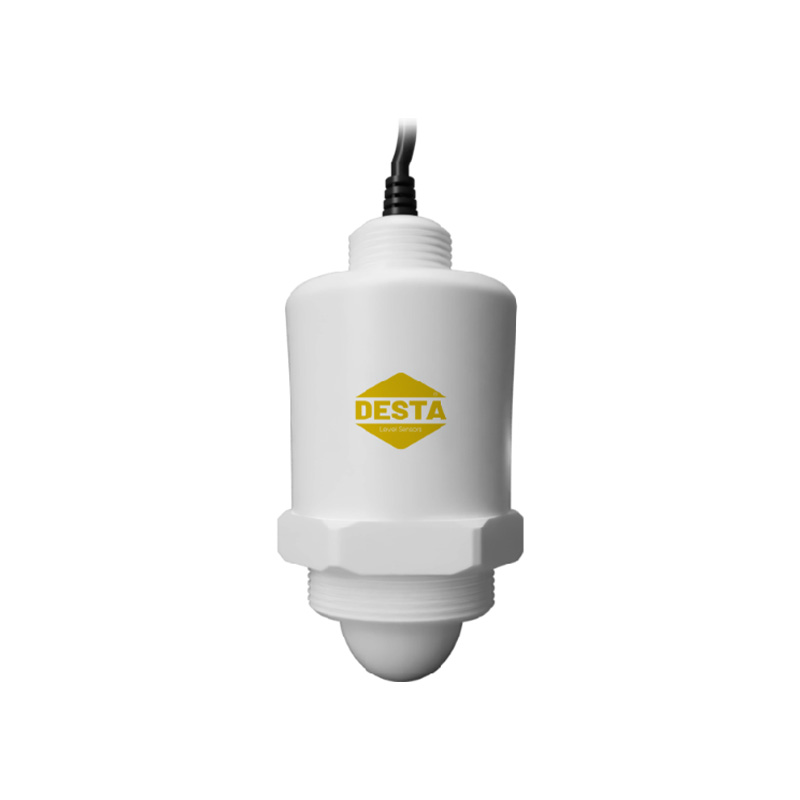

80 GHz Radar Level Transmitter - LPRS80
The 80 GHz LPRS80 Radar Level Transmitter is designed for harsh conditions and offers a wide measurement range. It is suitable for use in narrow tanks and with fluids that have low dielectric constants. These level transmitters are appropriate for aggressive corrosive liquids, water channels, rivers, petroleum-derived fluids, heavy steam conditions, and some solid-liquid mixtures. They come with a standard 4-20 mA output and HART communication. With an IP67 rating, they can be comfortably used in outdoor environments.
CALL NOW
WHATSAPP
REQUEST FORM
Measuring Range | 0...30 m |
---|---|
Power Supply | 24 VDC |
Output | 4...20 mA |
Pressure | -1...3 Bar |
Accuracy | <±1 mm |
Power Supply | 24 VDC |
Beam Angle | 8° |
Temperature | -40…80°C |
Protection | IP67/IP68 Optional; Ex ia IIC T6 Ga |
Communication | HART, MODBUS, Bluetooth |
Features |
Contactless Level Measurement Durable in Harsh Conditions Ideal for Chemical Fluids High Accuracy |
×
